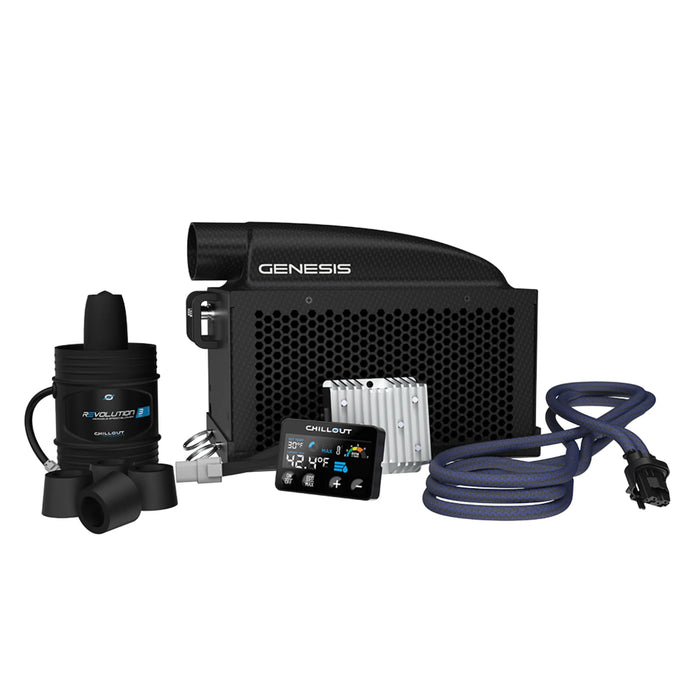

Complete Genesis core cooler rally setup
Genesis - Advanced Driver Cooling System
Genesis sets a new benchmark in liquid-based driver cooling. Designed for professional motorsport environments, it delivers up to 525 W of consistent thermal transfer to regulate core temperature, improve focus, and minimize heat-induced fatigue. The system uses a high-efficiency micro brushless compressor and 24 V internal pump, circulating chilled coolant through a sealed 298 ml reservoir and into the driver’s cooling apparel.
Constructed from lightweight carbon fiber, the Genesis system features a quick-release baseplate for fast removal between sessions and mounts flat to minimize cockpit intrusion. A cockpit-mounted digital remote gives drivers live control of temperature, fan modes (ECO/MAX), and system diagnostics. With self-priming functionality, an integrated bypass circuit, and an IP65 rating, Genesis is purpose-built for high-heat, high-stakes race conditions.
Key Features:
-
525W of cooling power with efficient heat extraction under extreme load
-
Carbon fiber housing and baseplate for weight savings and durability
-
Tool-free quick-release system for fast mounting and removal
-
Cockpit-mounted digital controller for live feedback and real-time adjustments
-
Low Draw Mode reduces amp draw during out laps and pacing.
-
Self-priming system eliminates manual bleeding
-
Built-in circulation bypass for shirt-disconnected operation
-
24V internal pump with 20L/min flow capacity
IP65-rated for dust and splash protection
What’s Included
- 1 x Genesis core cooler
- 1 x 4" 12ft Neoprene air duct hose
- 1 x 4" Carbon fiber NACA duct
- 1 x 10ft Insulated Y-coolant hose

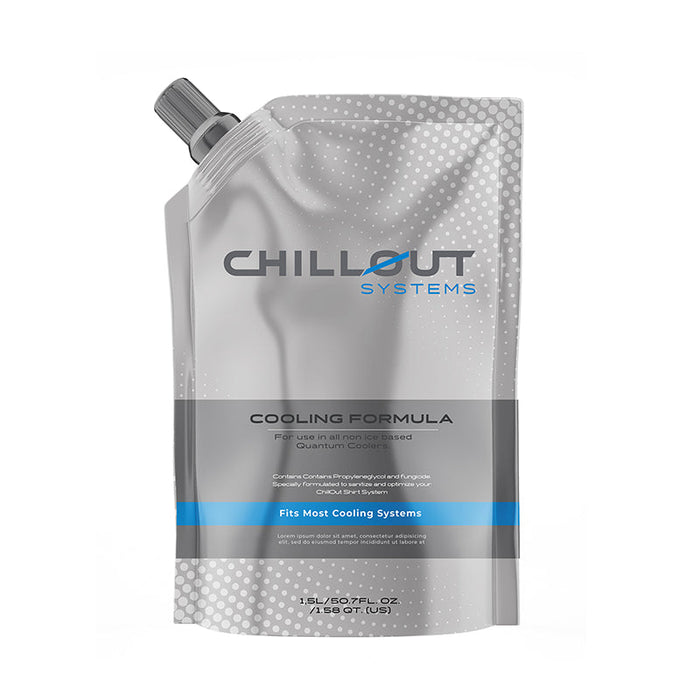

- 2 x Ready to use coolant formula 1,5L
- 2 x Pro Touring cooling shirt in your desired specs (Right or left-hand connection, color and size)

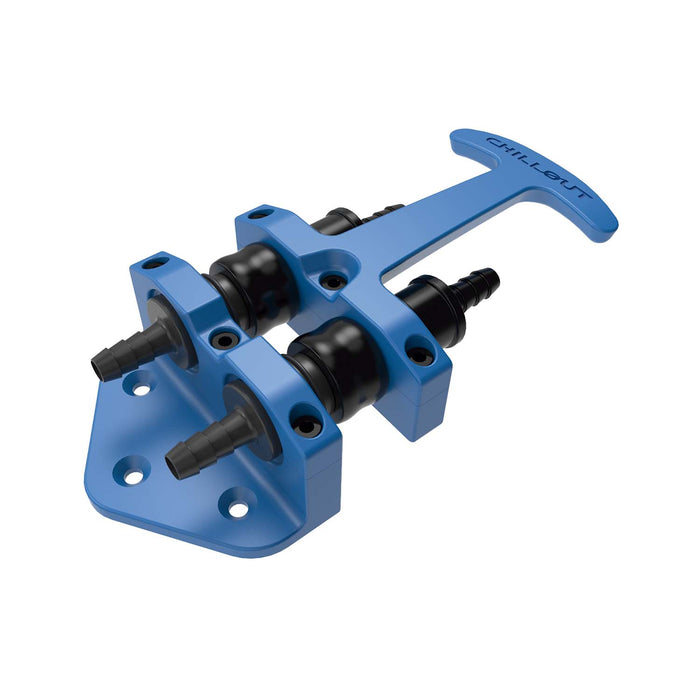

- 2 x Rapid release kit
Shirts 2XL or larger require 8 weeks production time. We do not keep these on hand.
